Automatic Waffle Cone Tshuab

Lub tshuab waffle lub khob hliav qab no tsis siv neeg lub khob hliav qab los ntawm 140mm mus rau 160mm.Lub tshuab tuaj yeem ua cov waffle cones nrog ob xim lossis peb xim rau kev siv sib txawv.Cov khoom siv khov nab kuab yog cov khoom siv ntse thiab siv tau zoo.Cov kab ntau lawm yog suav nrog cua compressor, tov khoom, batter tank, ci battering qhov cub, qhov chaw nres tsheb thiab cov khoom siv. system, hlau ntes, txee nrog stacking thiab daim ntawv lub tes tsho dispenser.

Xa kev nug

Hauj lwm lawm

Technical Parameter

Qauv	TH35X2-16T
Tsav lub cev muaj zog	380V, 2.2 KW
Rolling lub cev muaj zog	380V, 0.2KW 1
Cua tshuab	380V, 1.3kw
Kev siv roj	5-8 kg / h
Ci phaj loj	360 * 240 hli
Muaj peev xwm	2000-3000 / teev
Cone ntev	Tsawg dua los yog sib npaug li 160mm
Baking phaj kom muaj nuj nqis	35 qab
Rolling pwm kom muaj nuj nqis	16 qab
Tshuab ntsuas	7100 * 2300 * 1750 hli
Tag nrho qhov hnyav	5 700kg
Baking phaj khoom	QT #600
Tswj vaj huam sib luag hom	Delta
Cua blower hom	Lub teb chaws Yelemees Goorui
Bearing hom	Germany FAG
Sensor	Nyiv Sunx
Nyob zoo kub roj	Germany KUBER
Servo lub cev muaj zog system	Delta

Cov khoom tiav

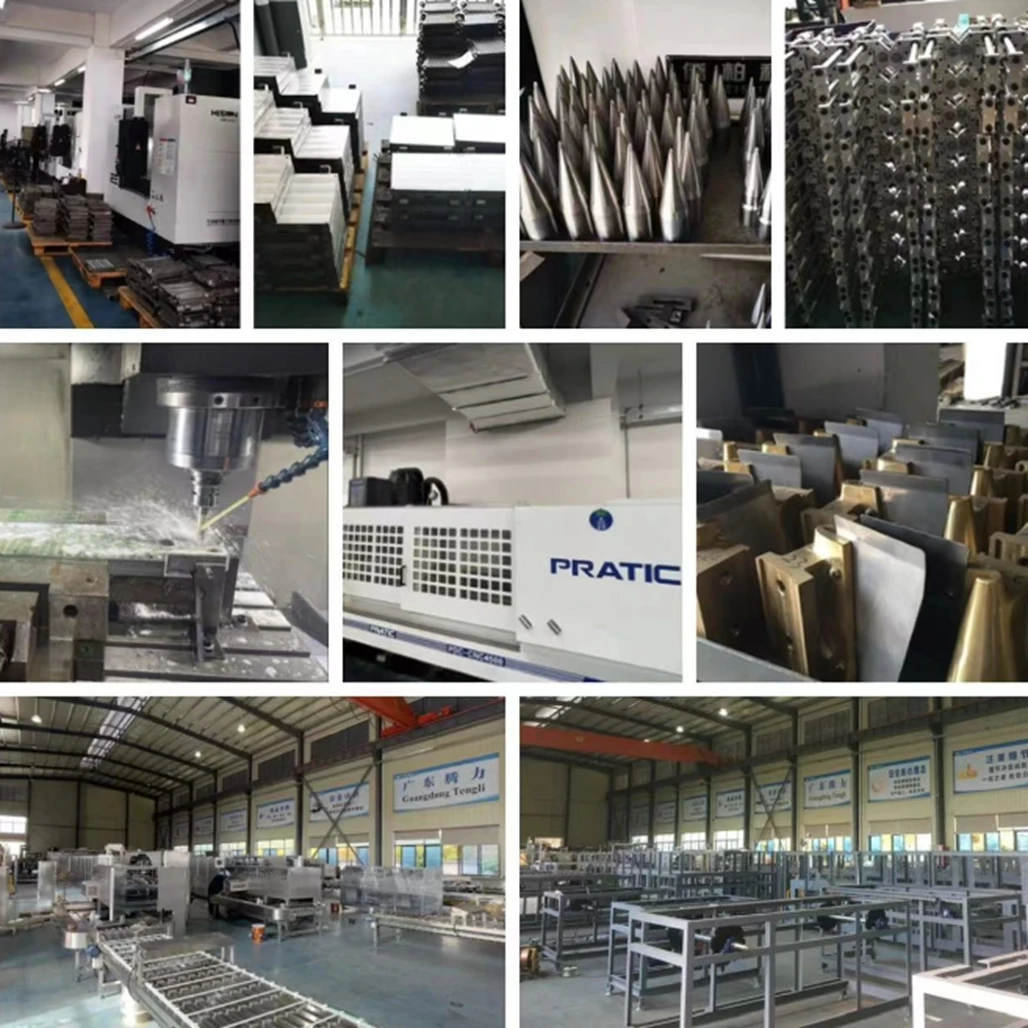

peb lub Hoobkas

1. Peb lub Hoobkas tau tsim nyob rau xyoo 2007 nrog 3 tus tswv cuab, ib tus yog tus thawj coj ua haujlwm raws li kev muag khoom thiab tus neeg yuav khoom, ib tus yog engineer thiab ib tus yog lub luag haujlwm rau tom qab- kev pabcuam muag.

2. Peb muaj kev paub zoo hauv kev tsim, kev txhim kho thiab tom qab- kev muag khoom.

3. Peb muaj peev xwm ua tau zoo nrog txog 50sets ntawm cov cav tov rau ib xyoos.Qhov no yog tus naj npawb 1 hauv Suav teb.

4.Peb ua rau feem ntau ntawm peb lub tshuab peb tus kheej kom tswj tau qhov zoo xws li cov phaj ci, lub cev lub ntsiab, cov khoom thauj, tov khoom, dov pwm, qhov rooj thiab lwm yam.

5.Lub Hoobkas npog thaj tsam tshaj 8000 square metres thiab muaj thaj chaw tsim kho tshaj 11000 square metres.Peb tau hloov peb lub Hoobkas rau 4 zaug vim tias kev lag luam loj hlob sai.Tam sim no peb muaj lub tsev ua haujlwm nrog chav sib tham, chav txais tos, nyiaj txiag department, department sales, technical department, export department, tom qab - sales service department.
